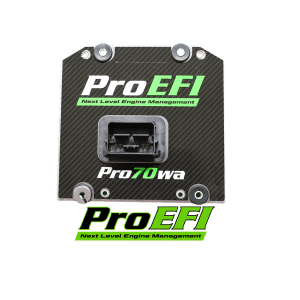

Standalone ECU / ProR
| Pro70 Specs: | Pro70w Specs: |
| 80mz Processor | 80mz Processor |
| Environmental – Meets J1113 | Environmental – Meets J1113 |
| Voltage 8v to 32v Operating Range | Voltage 8v to 32v Operating Range |
| 25 Inputs/26 Outputs | 25 Inputs/26 Outputs |
| Crank Input VR/Digital | Crank Input VR/Digital |
| CAM Input Digital (up to 2 cams) | 1 CAM Input Digital |
| Up to 19 Analog inputs | 18 Analog Input |
| Up to 5 Digital Inputs | Up to 5 Digital Inputs |
| 1 Frequency input | 1 Frequency input |
| 2 Knock Sensors | 2 Knock Sensors |
| 4 Peak and Hold Injectors + 2 Saturated Injectors [Total of 6 Injectors] | 4 (7amp) Peak and Hold Injectors |
| 6 EST Ignition Outputs | 6 EST Ignition Outputs |
| 9 Low Side Outputs | 7 Low Side Outputs |
| 1 H-Bridge | 1 H-Bridge |
| 2 CAN 2.0 Channels | 2 CAN 2.0 Channels |
| 1 Speed Input | 1 LSU 4.9 or NTK Wideband – No Speed Input |
| 4 Switch Inputs (non-frequency) | 4 Switch Inputs (non-frequency) |
| 3 Lamps (low current output) | 3 Lamps (low current output) |
FEATURES:
Nitrous
Boost Control
Electronic Throttle (DBW)
Air Conditioning
Tachometer drive
Drivers Information Light (DIL/shift light)
Idle air control motor
TPS
Manifold Pressure
Coolant Temp
Air Temp
Oil Temp (Spare if unused)
Clutch switch (two step antilag)(Spare if unused)
Single EGT sensor(Spare if unused)
Manifold Surface Temp(Spare if unused)
Fuel Pressure
Exhaust BackPressure(Spare if unused)
I-Boost Control(Spare if unused)
Nitrous Request(Spare if unused)
A/C Request(Spare if unused)
Knock Control
Environmental Specifications
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles. It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using or installing any Professional EFI Systems Inc. product.
IMPORTANT EMISSIONS NOTICE:
In many states, it is unlawful to tamper with your vehicle’s emissions equipment. Professional EFI Systems Inc. products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles. Only and may never be used on a public road or highway. Using Professional EFI Systems Inc. products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists. (more information can be found on www.semasan.com/emissions for state by state details in the USA)
