AFR Guage & Data Logger / Koso
Regular price
$399.95 USD

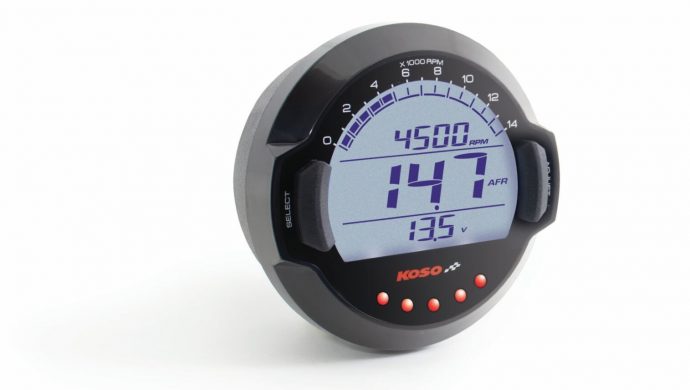

The DL-03A is the newest addition into our lineup of multifunction meters which features air fuel ratio reading, RPM and playback ability to optimize your rides performance. The large digits and bright backlight makes it easy to read at anytime. This meter is also easy to operate, compact and lightweight and can be mounted to many applications including snowmobiles, UTV’s and more.
*If gauge is not reading correctly on initial start-up, power OFF the unit, disconnect and reconnect the sensor, then power unit back on.
Specifications (R= Range U=Unit)
- Cable Length 6' or 12'
-
Tachometer
R: 0 ~ 14,000 RPM
U: 1 level = 1,000 RPM -
Air/fuel ratio
R: 9.0 ~ 24.0 -
Over LEAN setting
R: LEAN 14.7 ~ 24 -
Over RICH setting
R: RICH 9.0 ~ 14.7 -
Sensor type
Bosch oxygen sensor: LSV 4.9 -
Compatibility
2 stroke or 4 stroke engines - ”2 stroke adaptor” BG001855 is
optional when used on a 2
stroke application - Requires a DC 12 V battery absolutely
(will not function with our AC/DC
converter) ! -
Records: Number of records:
50 sessions
-
Recording time
R: 99’59’’99 seconds | TR: approx 3.18 Hr -
Play mode speed
1 x play / pause
3 x play / pause
1/3 x play / pause
1 x rewind / pause -
Digital volt meter
R : DC 5 ~ 24 V
Flashing numbers settable range
DC 8V to DC 18V -
Heated screen
Optimized visibility under cold weather -
Backlight brightness
R: 3 levels -
Indicator lights
5 red LED warning lights -
Effective temperature
R:14 ~ 140 °F (‑10 ~ 60 °C) -
Effective voltage
DC 12 V
